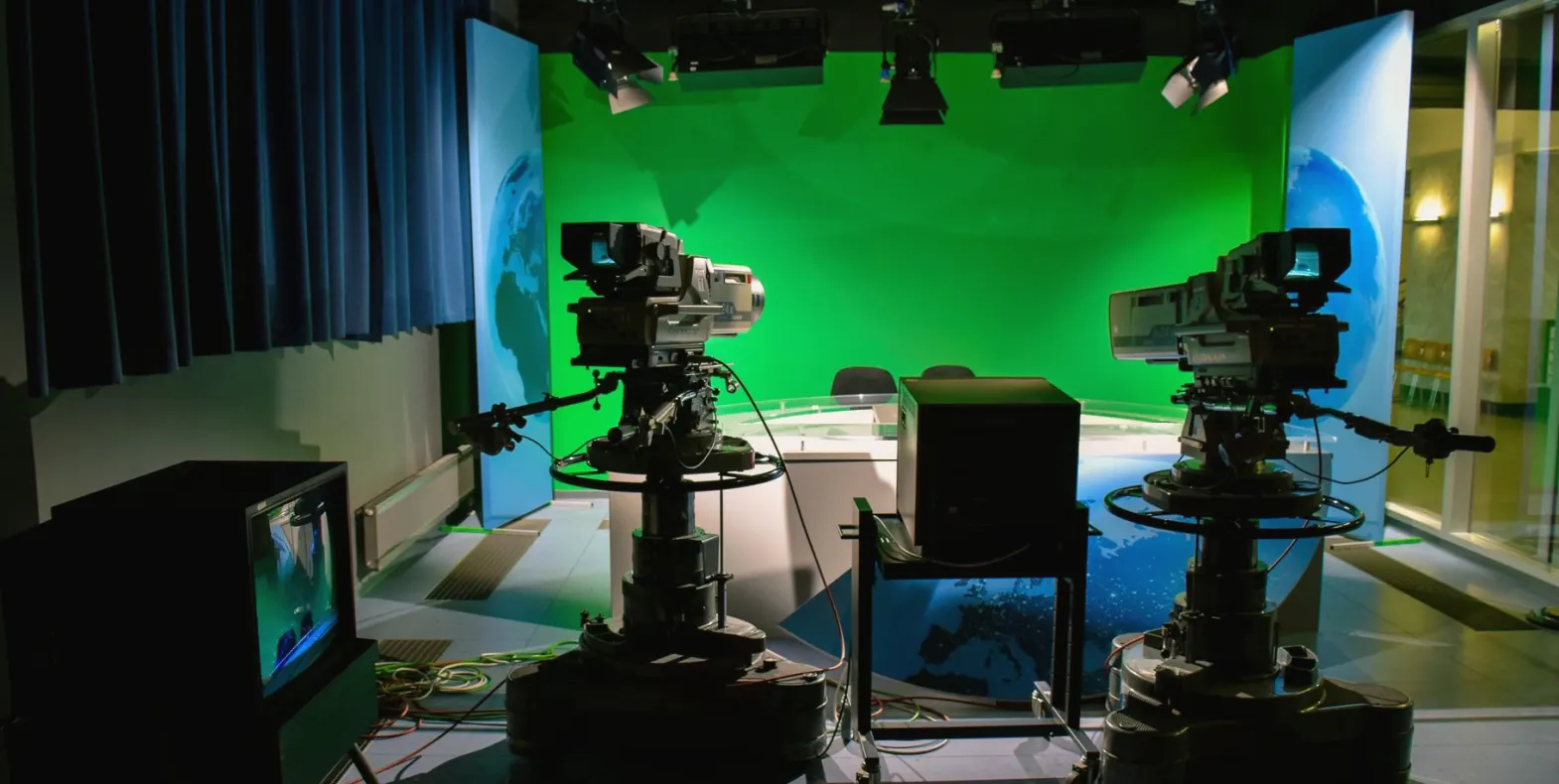

Studio Equipment Integration: a checklist to work through before you decide

Most integration problems begin with a shopping list written before anyone has described the programmes. Before you compare vision mixers or routers, write down what the studio must produce in a normal week: a short news bulletin, a long interview, a live show with guests in the room. Note how many cameras each needs, how many sources arrive from outside, and how many people sit in the gallery.

I come to this as a camera specialist, and I see the consequences from the floor. When the programme list is vague, the system is sized for an imagined peak and then misses the real daily pattern. A mixer with more inputs than you will ever use still costs gallery space, power and training time.

A clear weekly picture also lets whoever designs the wiring say no to extras with a reason, which saves money later.

• Which programmes run weekly, and for how long each
• Maximum cameras, remote sources and graphics feeds at once
• How many crew sit in the gallery during a live show

Routing is the part of a studio nobody sees and everybody depends on. Ask for a signal path drawing that shows every source, where it enters, which router or mixer it passes through, and where it ends up on a monitor or in the recorder. If a proposal cannot show that on one sheet, the design is probably not finished.

Think about what happens when one piece fails. A router with no spare outputs, or a single sync generator with no fallback, turns a small fault into a stopped programme. You do not need to duplicate everything, but you should know which failures the studio can absorb and which ones it cannot.

Ask also how sources are labelled. Names on the router that match names on the mixer and on the monitor wall prevent the wrong camera going to air.

• A single signal path drawing covering all sources and destinations
• Which failures the studio survives and which stop transmission
• Consistent source names across router, mixer and monitors

Intercom is often treated as an afterthought, yet it is how the director, floor manager and camera operators stay together during a live show. Check how many channels you need: a typical gallery wants at least a production line, a technical line and a private line to the floor, and sometimes a separate feed for presenters' earpieces.

Test comfort as well as function. Operators wear headsets for hours, so weight, cable length and the ability to mute without fumbling matter more than a longer feature list. I have watched good camera work suffer because an operator could not hear the cue over studio noise.

Ask where the talkback sits relative to the cameras and whether operators can reach their belt packs while moving the pedestal.

• Number of intercom channels and who is on each
• Headset comfort for long shifts and easy muting
• Presenter earpiece feed kept separate from crew lines

A monitor wall is only useful if you trust it. Ask how many screens the design includes, what each one shows, and whether the programme and preview outputs are placed where the director naturally looks. Clutter here costs seconds, and seconds are what live television cannot spare.

Check the screens for consistency of colour and brightness between cameras. When operators match their cameras by eye on poorly set monitors, the result is visible on screen as shifts between shots. Agree how monitors will be set up and who is responsible for keeping them that way.

Ask whether audio metering sits within view of the vision mixer operator, and whether a waveform or similar tool is available for the person matching cameras.

• What each monitor shows and where the director looks first
• Colour and brightness settings agreed and recorded
• Audio meters visible from the mixer position

A studio that works on the day of handover can still fail six months later if nobody understands how it was wired. Ask what documentation comes with the system: signal drawings, labelled patch lists, device settings, and a plain-language fault procedure for the first things that go wrong. You should be able to hand these to a new engineer and have them find their way.

Ask about training too. A short session for the people who will run the studio every day is worth more than a long one for managers. Agree who will be trained, on which shifts, and whether a written quick guide for the gallery is included.

Finally, ask who you call when something stops working and how quickly someone can look at it. A clear answer is part of the system.

• Signal drawings, patch lists and saved device settings
• Training for the daily crew, not only the managers
• A named contact and a stated way to report faults

Costs are easier to compare when each proposal separates equipment, cabling, installation, commissioning and training. A low equipment price with a vague installation line often hides work you will pay for later. Ask what is included in the quoted figure and what would change it, such as a longer cable run or a wall that needs to be opened.

Look at the room itself. Rack space, ventilation, power circuits and cable routes limit what can be installed, and they are far cheaper to settle on paper than after the equipment arrives. Ask whether the design leaves spare capacity in racks and router ports.

Growth deserves a sentence of its own: a studio that adds a camera or a remote link next year should not need the gallery rewired.

• Separate lines for equipment, cabling, installation and training
• Rack space, ventilation and power checked in advance
• Spare router ports and rack units left for later additions
